small oil pressing machine from China manufacturer

Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Packing: standard export package

Brand Name: yuanyang

Capacity(kg/h): 35~55

Production condition: staff1, plant 10m2

Maximum working pressure: 50MPa

Machine weight: 1000KG

Motor Model Power: Motor Model Power

Production Capacity: 500sets

Delivery Date: within 5months

Every time a sesame: 6-8KG

Dimension (mm): 900*850*1550

Heater power: 2KW

PN: 1900KN

Heater temperature control: 70-100.C

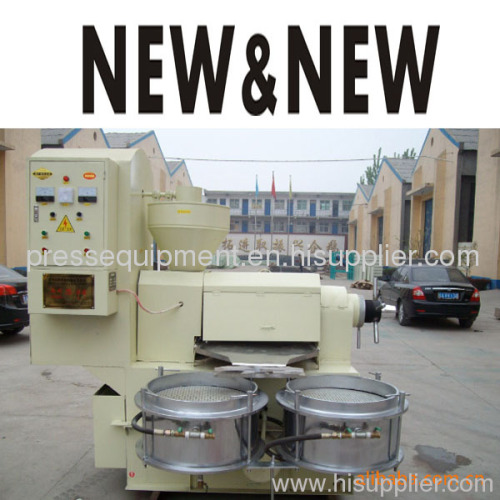

Mini-type cold and hot amphibious spiral oil press machine
1.1 Screw speed: 30-40r/min
2 Oil press euipment for vegetable seeds
3.Wide usage

Mini-type cold and hot amphibious spiral oil press machine
1 Screw speed: 30-40r/min
2 Oil press euipment for vegetable seeds

Mini-type cold and hot amphibious spiral oil press machine parameters:

Model	6YL-80	6YL-100	6YL-120	6YL-130	6YL-160
Screw speed	30-40r/min	30-40 r/min	30-40 r/min	28-40 r/min	28-40 r/min
gear ratio	14/42x19/57=1:6.63	15/40x15/55=1:9.78	15/34x15/55=1:9.59	15/38x19/48=1:7.38	15/38x15/52=1:8.78
Dimension	1700x1250x1650	1950x1300x1900	2050x1350x2000	2200x1600x2150	2500x1600x2500
Productivity	80-150kg/h	150-250kg/h	200-300kg/h	250-400kg/h	450-600kg/h
Power	Y160L-6-5.5KW	Y160M-6-7.5KW	Y160L-6-11KW	Y180L-6-15KW	Y200L-6-18.5KW
Vacuum pump	Y90S-4-0.55KW	Y90S-4-1.1KW	Y100L1-4-1.5KW	Y100L1-4-2.2KW	Y100L1-4-2.2KW
Heater	2KW	3KW	3.3KW	3.8KW	4KW

The above parameters is according to oil material that is refined, separated, flaked, steamed and fired, and the auxiliary equipments are complete with reasonable techniques.

Mini-type cold and hot amphibious spiral oil press machine working principle:

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil.

Mini-type cold and hot amphibious spiral oil press machine structural features:

6YL series screw oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
