cottonseed oil screw expeller from China manufacturer

Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Packing: standard export package

Brand Name: yuanyang

Screw speed: 30-40 r/min

Dimension: 1950x1300x1900

power: 3KW

Production Capacity: 500sets

Delivery Date: within 5months

type: Cold & hot

gear ratio: 15/40x15/55=1:9.78

Productivity: 150-250kg/h

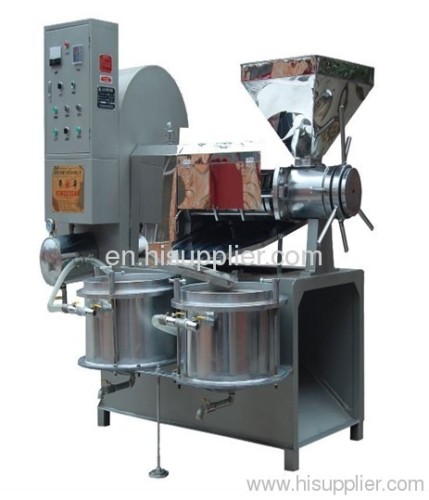

6YL-130 cottonseed oil presser with high oil yield
1 screw speed:28-40 r/min
2 capacity:250-400
3 simple operation, low cost

6YL-130 cottonseed oil presser with high oil yield
1 screw speed:28-40 r/min
2 capacity:250-400
3 simple operation, low cost

6YL-130 cottonseed oil presser with high oil yield parameters

Model	6YL-100	6YL-120	6YL-130	6YL-160
Screw speed	30-40 r/min	30-40 r/min	28-40 r/min	28-40 r/min
gear ratio	15/40x15/55=1:9.78	15/34x15/55=1:9.59	15/38x19/48=1:7.38	15/38x15/52=1:8.78
Dimension	1950x1300x1900	2050x1350x2000	2200x1600x2150	2500x1600x2500
Productivity	150-250kg/h	200-300kg/h	250-400kg/h	400-600kg/h
power	Y160M-6-7.5KW	Y160L-6-11KW	Y180L-6-15KW	Y200L-6-18.5KW
vacuum pump	Y90S-4-1.1KW	Y100L1-4-1.5KW	Y100L1-4-2.2KW	Y100L1-4-2.2KW
heater	3KW	3.3KW	3.8KW	4KW

6YL-130 cottonseed oil presser with high oil yield working principle:

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil.
